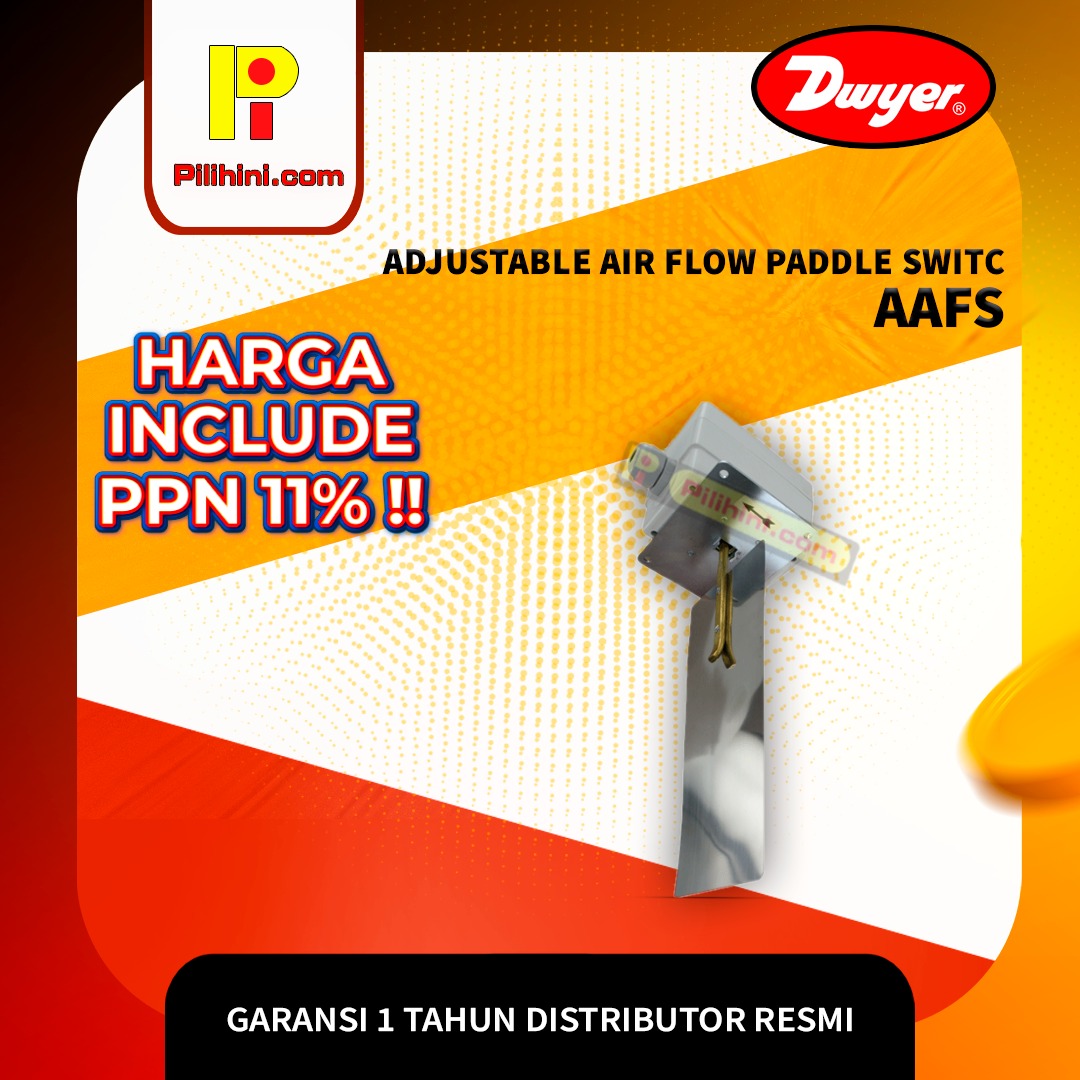

Dwyer AAFS Adjustable Air Flow Paddle Switch

Rp1.700.000

12 in stock

Category:

Description

The MODEL AAFS Adjustable Air Flow Switch is capable of detecting a wide range of air velocities with minimal user calibration. Quality features include a stainless steel vane, galvanized steel base, and ABS enclosure.

California Residents: Click Here for Proposition 65 WARNING.
Product Applications

Air flow proving in HVAC systems

Service:
Air and compatible gas.
Wetted Materials:
Vane: SS; Lever: Brass; Base: Galvanized steel.
Housing:
ABS.
Temperature Limits:
Ambient: -40 to 180°F (-40 to 85°C); Process: -14 to 185°F (-10 to 85°C).
Humidity Limits:
10 to 90%, noncondensing.
Switch Type:
SPDT.
Electrical Rating:
15(8) A @ 250 VAC.
Electrical Connection:
Screw terminal with M18 x 1.5 cable gland.
Process Connection:
Flange.
Mounting Orientation:
Horizontal duct flow.
Set Point:
Internal screw.
Enclosure Rating:
IP65.
