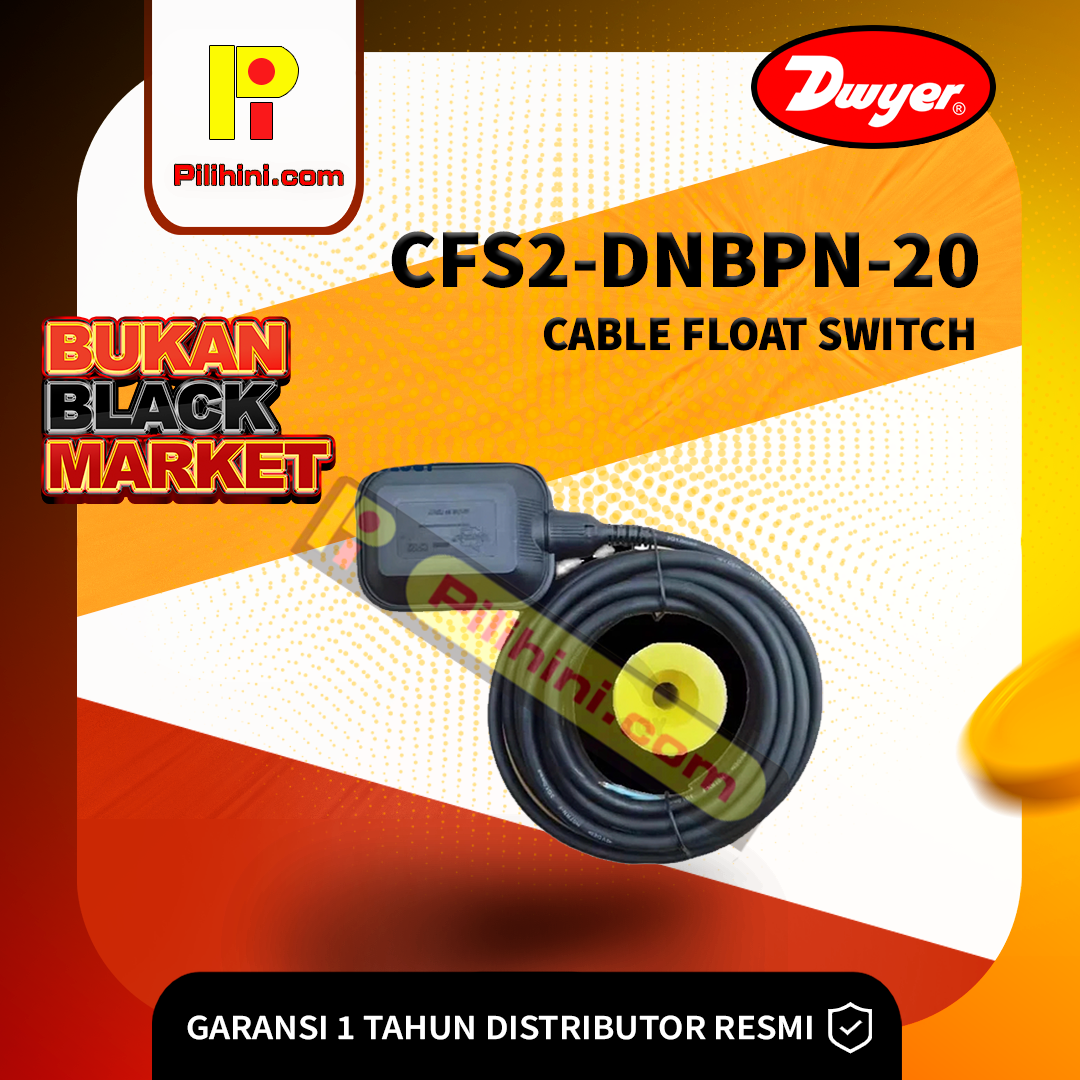

Dwyer CFS2-DNBPN-20 Cable Float Switch

Rp690.000

Category:

Description

CFS2-DNBPN-20 PVC cable, SPDT, 10(8)A 250V~, 20 ft ( 6.10 m) cable

The SERIES CFS2 Cable Float Switches is a mechanically actuated floating switch intended to activate electrical components, such as pumps, to start and stop automatically. The CFS2 is perfect for simple level control of liquids for filling or draining reservoirs and tanks.

Product Applications
1. Water level monitoring
2. Tank level control
3. High or low level alarm
4. Municipal water control
5. Industrial water control
6. Filling or draining reservoirs and tanks
7. Pump automation

Specifications

Service: Compatible liquids.
Wetted Materials: Enclosure: Polypropylene; Cable: See model chart on catalog page.
Temperature Limits: 32 to 122F (0 to 50C).
Pressure Limits: 14.5 psi (1 bar).
Enclosure Rating: IP68.
Switch Type: See model chart on catalog page.
Electrical Rating:CFS2-XXBXX-XX
10 (8) A @ 250 VAC.
CFS2-XXDXX-XX
1 HP @ 125 VAC 16 FLA;
2 HP @ 250 VAC 12 FLA;
Cable: 0.77 oz (21.27 g) per ft.
Agency Approvals: CE, CSA, UL.
