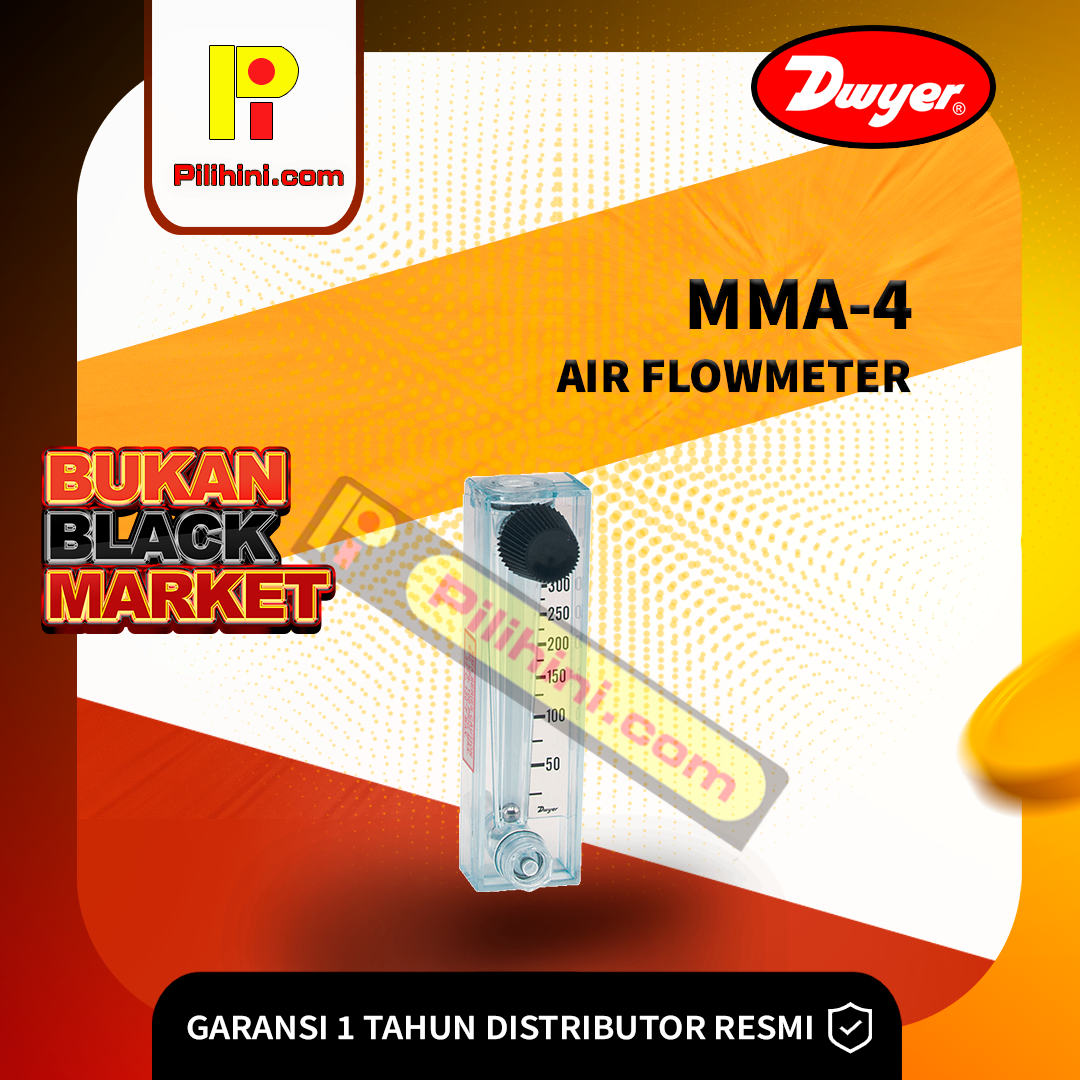

Dwyer MMA-4 Mini-Master Flowmeter

Description

MMA-4 Flowmeter, range .5-5 SCFH air.

Offering advanced features at low cost, the SERIES MM flowmeters are ideal for a wide range of OEM and user application in medical equipment, air samplers, gas analyzers, pollution monitors, chemical injectors, cabinet purging, etc.

Specifications
MMA

Service: Compatible gases and liquids.
Wetted Materials: Body: Nylon 12; O-rings: Buna-N (optional materials available); Float: Black glass, K monel, stainless steel, tungsten carbide.
Temperature Limit: 130F (54C).
Pressure Limit: 100 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp.
Accuracy: 4% FS.
Process Connection: 5/16″ OD for push on rubber or plastic tubing with provided spring tubing clamp. Connect to rigid tubing with double compression fitting.
