Description

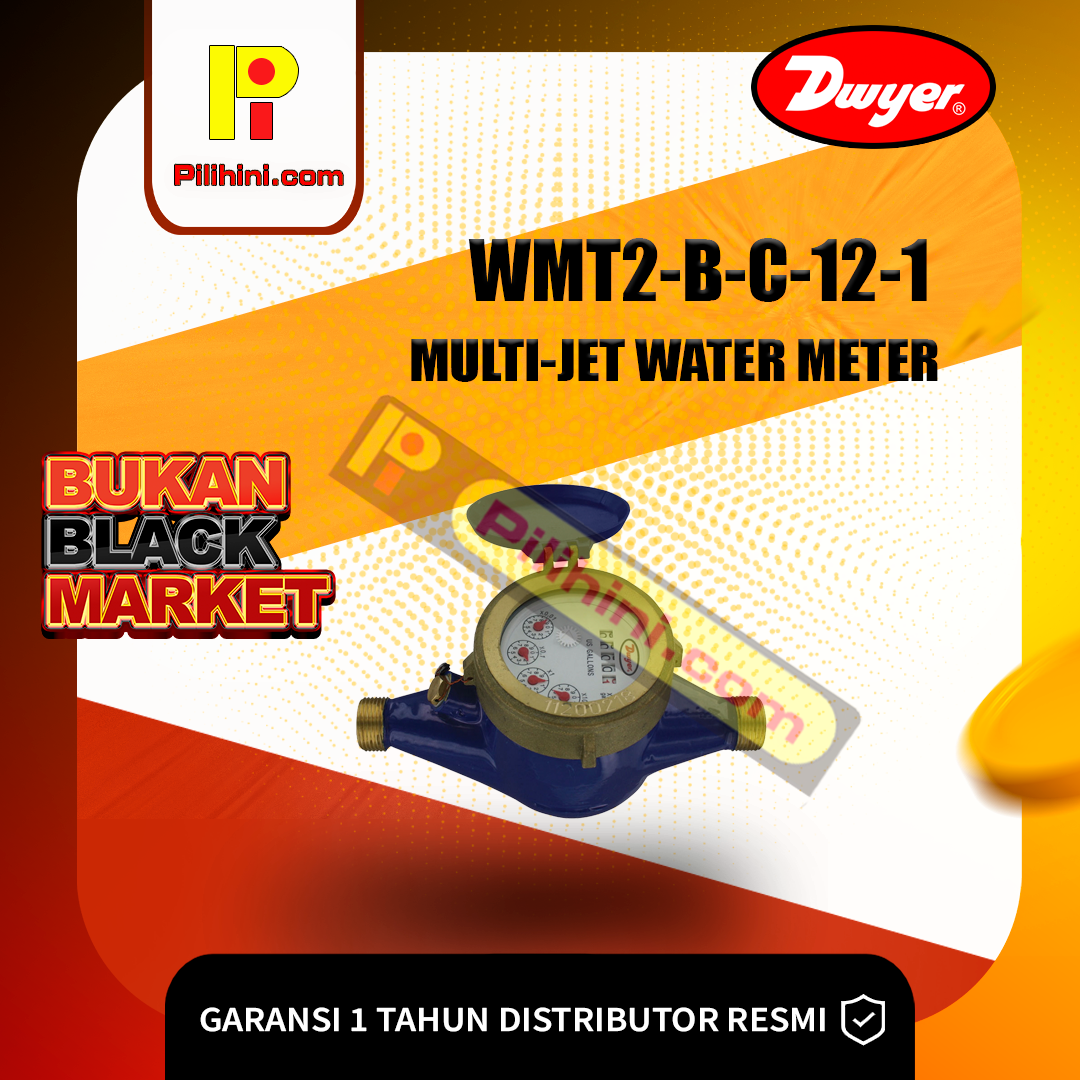

The Series WMT2 Multi-Jet Water Meter with Pulsed Output is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³ and provide a reed switch output proportional to flow rate. They are available in a range of body sizes and include NPT or BSPT couplings.
Spesifications :
Service : Water.
Wetted Materials : Body: Brass, polyethylene; Couplings: Brass; Measuring Chamber: Polyethylene, ABS plastic, ferrite, acetal.
Max Flow : 12 m3/h
Nominal Flow Range : 0,48 to 6 m3/h
Transitional Flow : 0,12 m3/h
Size / Coupling Size : 32mm / 1-1/4˝ BSPT
Accuracy : Transitional flow: ±5%; Nominal flow: ±2%.
Temperature Limit : 104°F (40°C).
Pressure Limit : 232 psi (16 bar).
Totalizing Display Maximum : See model chart on catalog page.
Output Signal : Pulse output with frequency proportional to flow rate (WMT2 only).
Pulse Options : 0.1 gal, 1 gal, 10 gal, 100 gal per pulse (1 L, 10 L, 100 L per pulse) (WMT2 only).
Electrical Rating : 0.01 A @ 24 VAC/DC (WMT2 only).
Electrical Connections : Color-coded lead wires, 4.5´ (1.5 m) long (WMT2 only).
Mounting Orientation : Horizontal with the register face pointing up.
