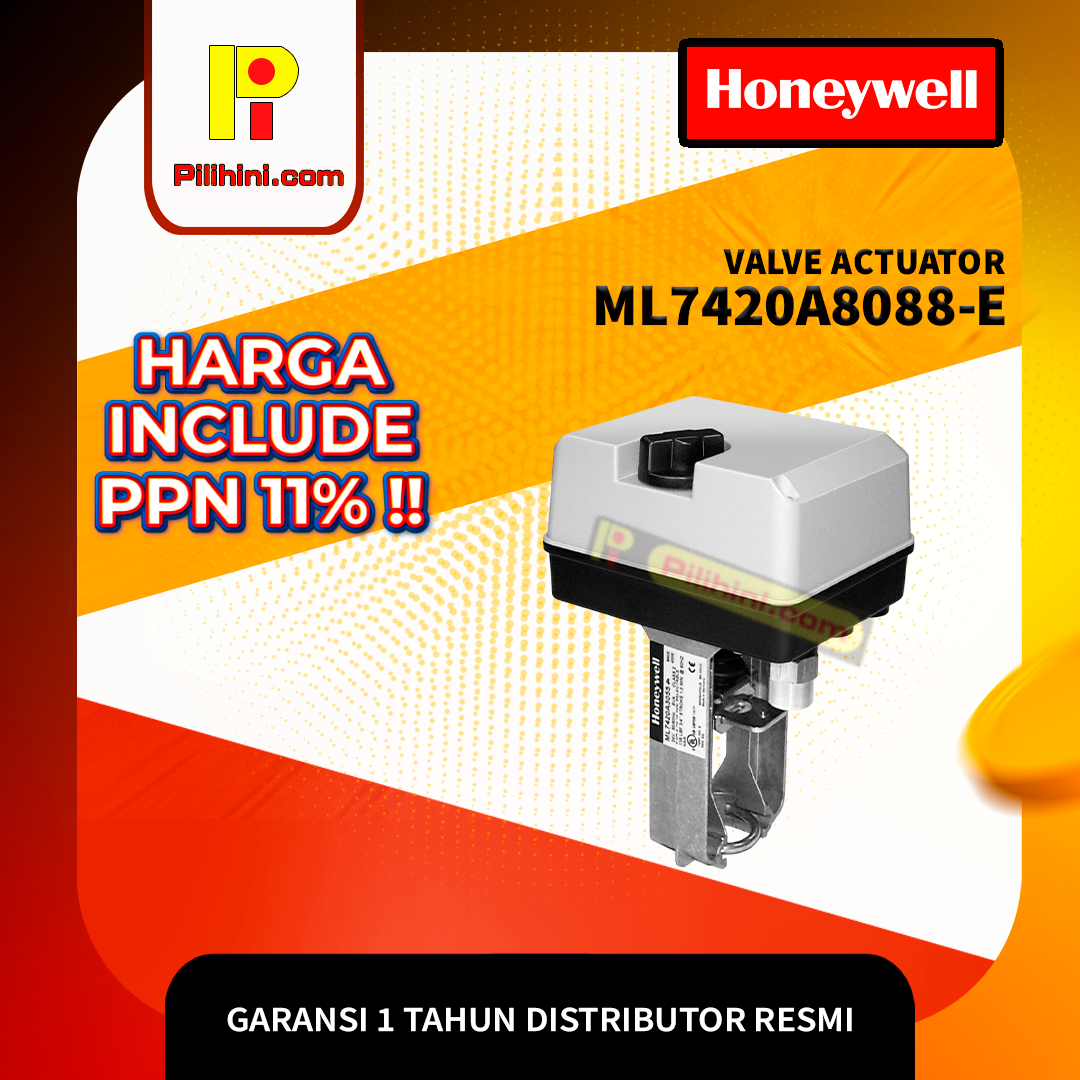

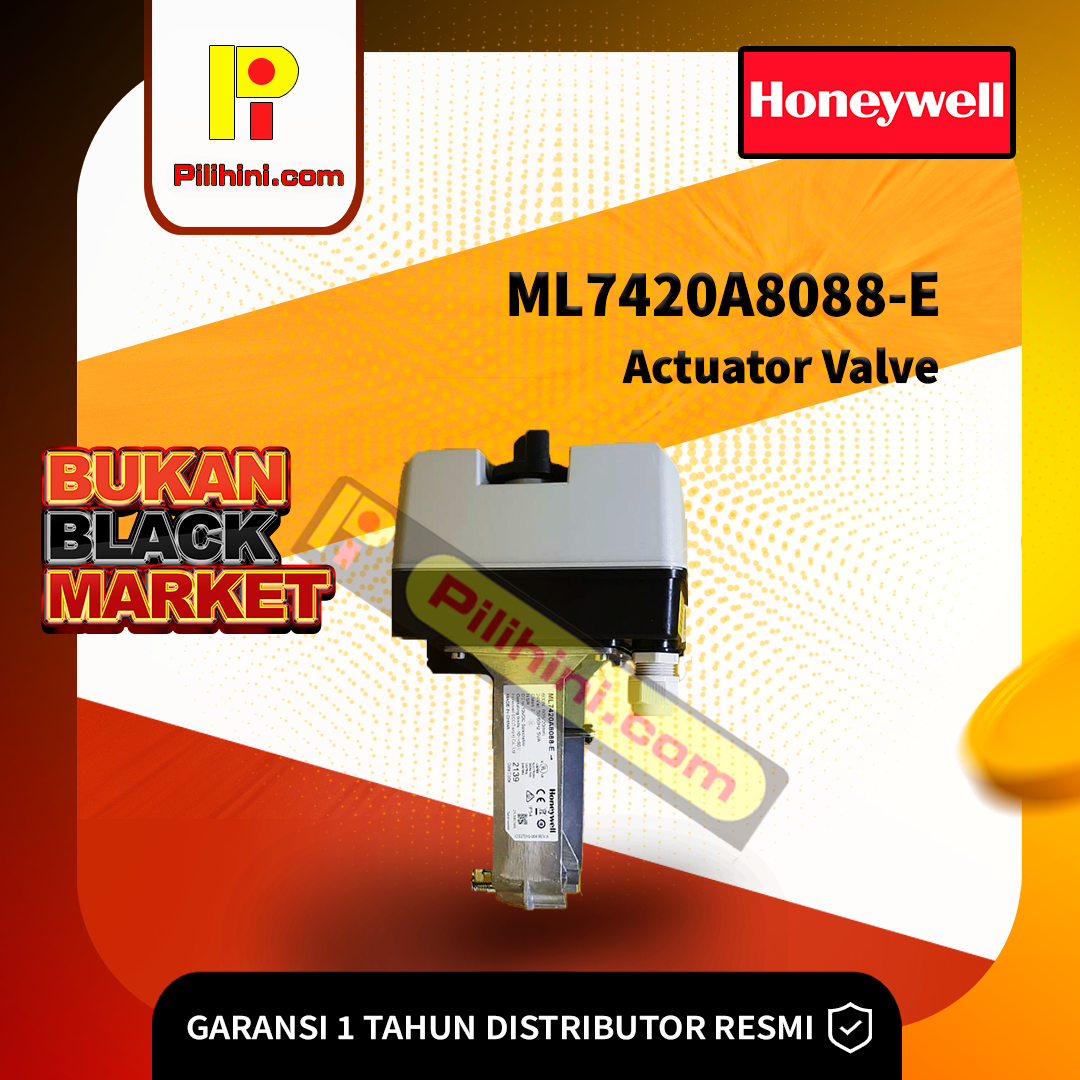

Honeywell Motor Aktuator ML7420A8088-E


20 in stock



The ML7420A actuators are designed for modulating controlwith controllers providing an analog output of 2…10 Vdc.They operate Honeywells standard valves in heating,ventilation, and air conditioning (HVAC) applications.

Easy and quick installation No separate linkage and adjustments required Low power consumption and maintenance-free Self-adaption function Force-limiting end stops Manual operation knob 0(2)~10 Vdc input and 2~10 Vdc position feedbacksignal Direct/ Reverse action adjustable Stroke position on signal failure selectable Corrosion-resistant design

Temperature LimitsAmbient operating limits -10~ 50at 5~95% r.h.Ambient storage limits -40… 70 C at 5…95% r.h.Medium temperature Max. 150 C (220 C withHigh-Temperature kit)SignalsSignal input voltage y=0~10 Vdc or 2~10 VdcRi=100 K8Signal source 1 K8 max.Position feedback signal x=2~10Vdc(fully extended)Load 1 mA max.SafetyProtection class III as per EN60730-1Protection standard IP54 as per EN60529Flame retardant housing V0 as per UL94(with metal cable gland)MaterialCover ABS-FRBase glass fiber reinforced plasticYoke aluminum diecast
