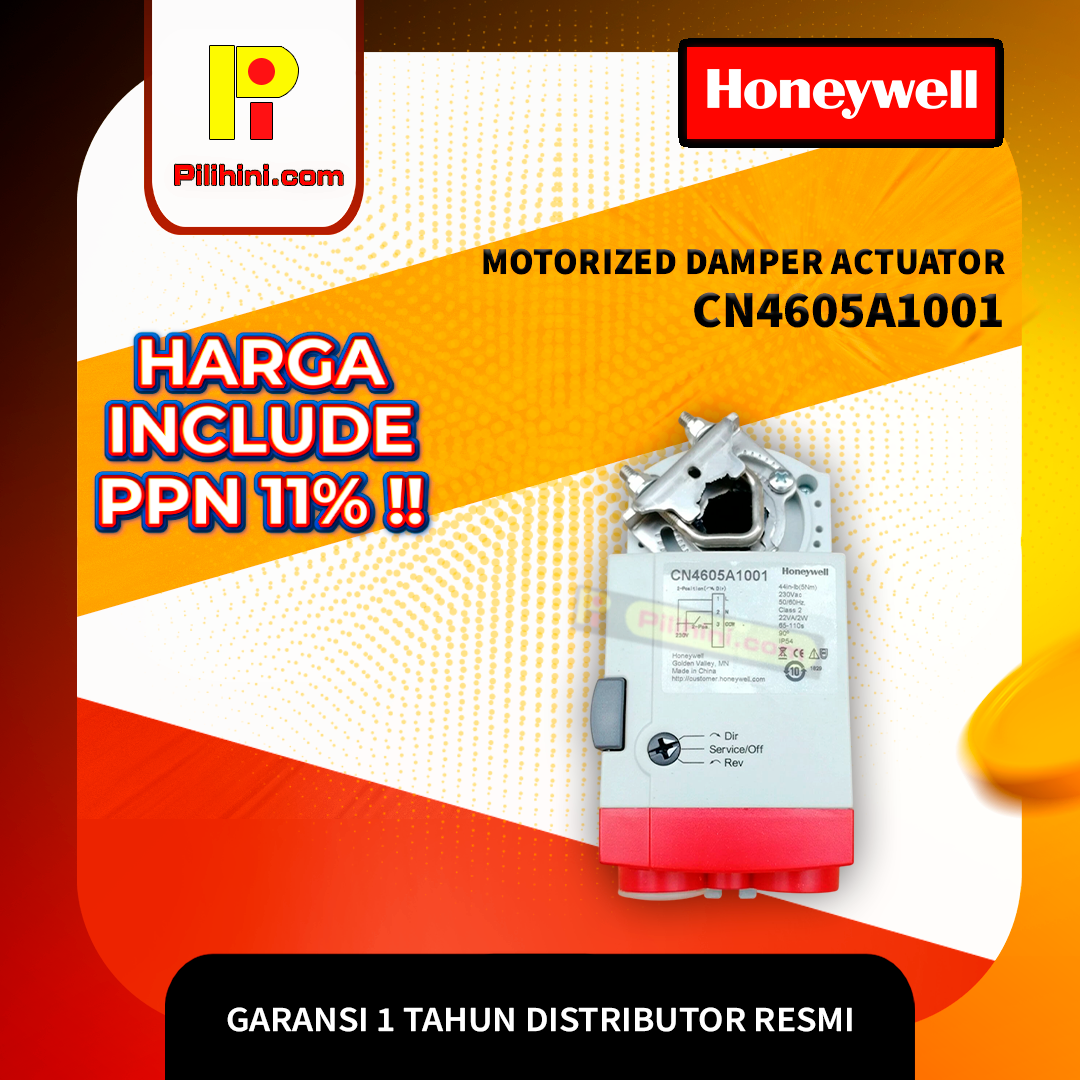

Honeywell Motorized Damper CN4605A1001

Description

Garansi Baru dan Asli dari Honeywell

Deskripsi Motorized Damper CN4605A1001 Honeywell

This non-spring return direct-coupled damper actuator provides floating and two-position control for: air dampers, VAV units, air handlers, ventilation flaps, louvers, and reliable control for air damper applications with up to 10 sq.ft. / 44 lb-in. (5 Nm) (seal- less damper blades; air friction-dependent).

Details
Manual adjustment
Adjustable mechanical end limits
Direct wiring
Mountable in any orientation
Rotation direction and service/OFF switch

SPECIFICATION
Supply voltage : 230 Vac -15%/+20%, 50/60 Hz
Nominal voltage : 230 Vac, 50/60 Hz
All values stated hereinafter apply to operation under
nominal voltage conditions.
Power consumption : 22 VA / 2W, 50 Hz
Runtime for 90 : 65 – 110 sec (60 / 50 Hz)
Ambient limits
Ambient operating limits -5…+140 F (-20…+60 C)
Ambient storage limits -22…+176 F (-30…+80 C)
Relative humidity 5…95%, non-condensing
Safety : Protection standard IP54
