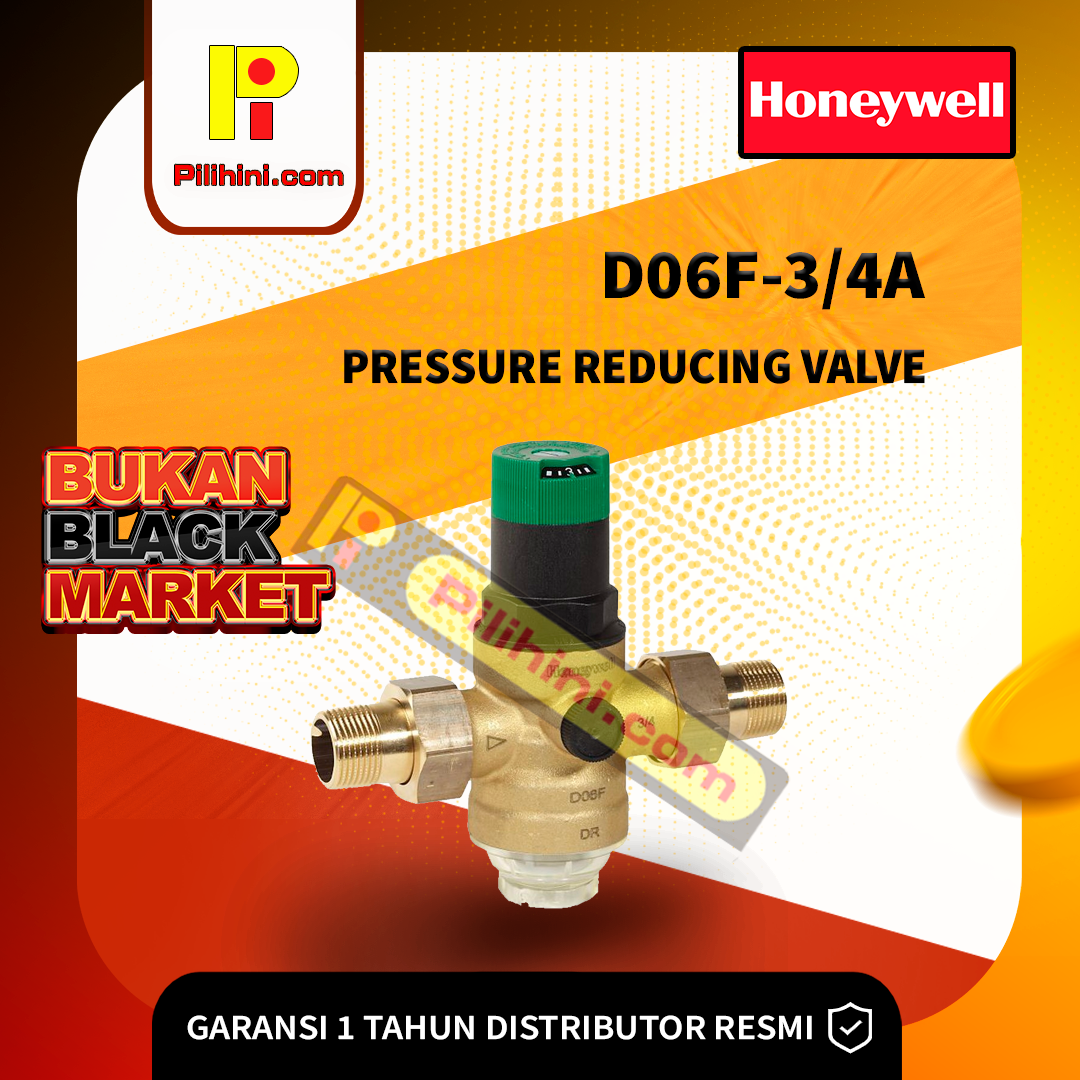

Honeywell Pressure Reducing Valve D06F-3/4A

Rp1.842.000

9 in stock

Category:

Description

Approvals
DVGW-certified
WRAS approved according to BSEN1567
Up to size 1 1/4″ approved for low noise, Group 1 without limitations
Medium type water
Body material brass, dezincification resistant
Spring bonnet material synthetic material
Filter mesh 0,16 mm
Setpoint scale yes
Balanced seat design yes
Pressure setpoint range 1,5 … 6 bar
Additional description
Outlet pressure preset to 3 bar
The outlet pressure is set by turning the adjustment knob
The set pressure is directly indicated on the set point scale
The adjustment spring is not in contact with the potable water
The valve insert is of high quality synthetic material and can be fully exchanged
Easily retrofittable to convert valve to a reverse-rinsing filter combination
Can be retrofitted with an inlet non-return valve
In applications where UV radiation and solvent vapours are present, use the SM06T brass filter bowl!
