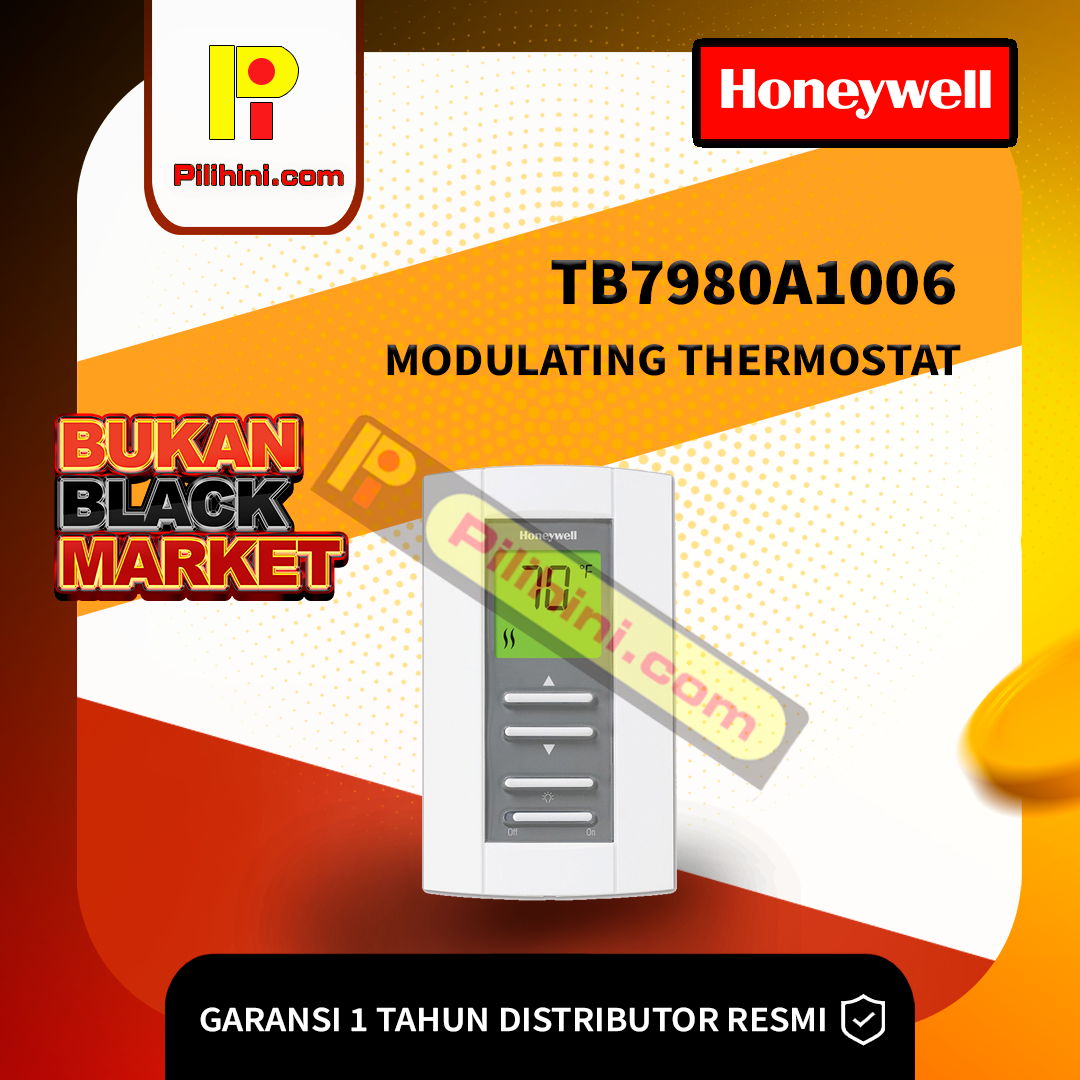

Zonepro Modulating Thermostat with 0-10 Vdc Control
The ZonePRO(R) thermostats are for low-voltage pressure-dependent variable air volume (VAV) applications. The four ZonePRO models can also be used for hydronic perimeter heating/cooling and bypass box with/without reheat.
Provides modulating (2 to 10 Vdc analog) control (TB7980)
Provides floating control (TB6980)
Provides 2 additional outputs (TB6980B and TB7980B)
Provides max. and min. setpoints for heating and cooling
Provides a night setback (NSB) terminal for energy savings.
Dimensions (in.)2 5/8 in. wide X 4 9/16 in. high X 1 in. deepDimensions (mm)69 mm wide X 118 mm high X 27 mm deepItem TypeProductMountingVerticalFrequency60 HzSupply Voltage24 VacOutput Signal0-10 Vdc or 2-10 VdcSetting Temperature Range (F)50F to 95FSetting Temperature Range (C)10C to 35COutput Signal Burden0-10V, 10k min
