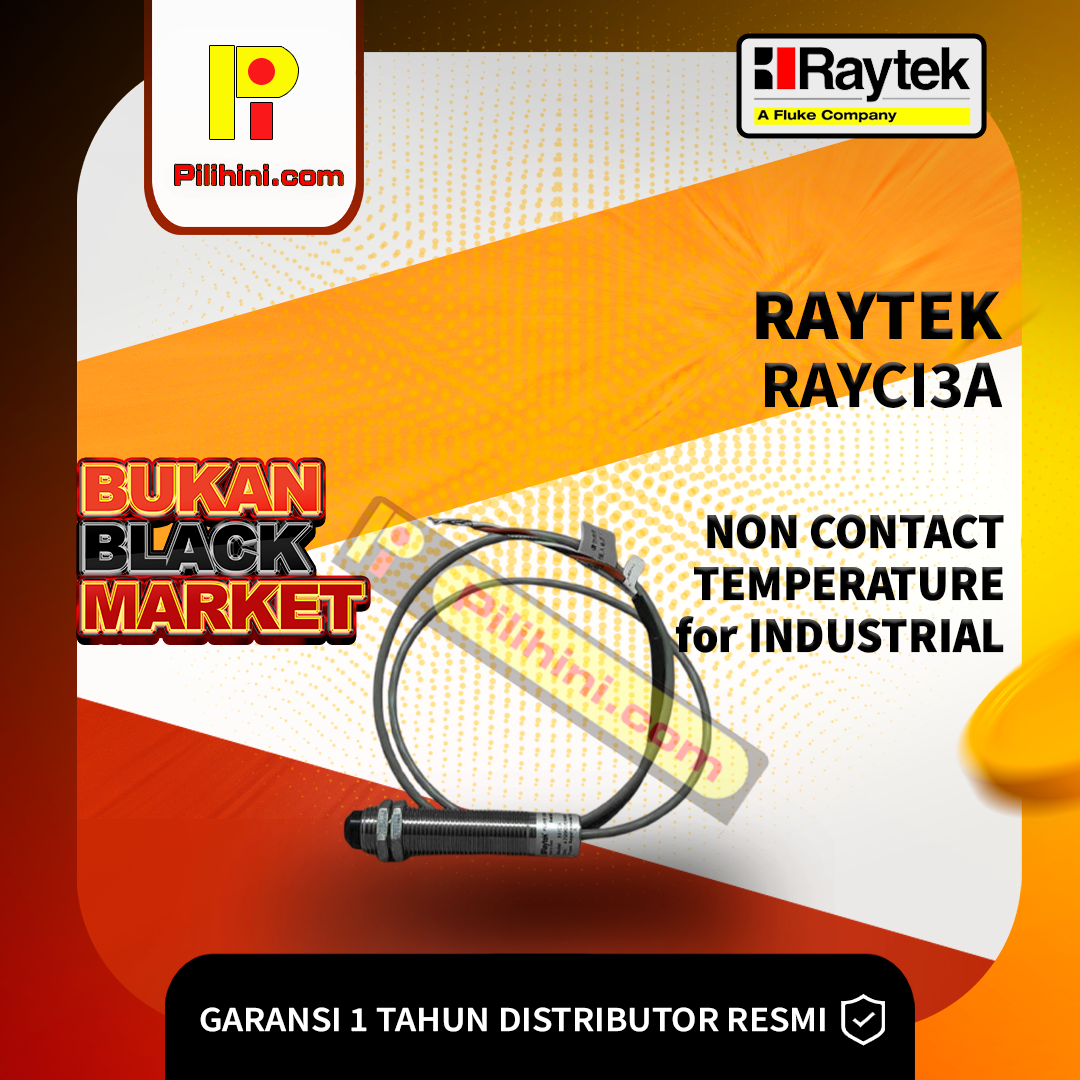

Raytek RAYCI3A Non Contact Temperature Measurement for Industrial

Rp4.900.000

Description

MODEL : CI3A
OUTPUT : Voltage
OVERALL TEMPERATURE RANGE : 0ºC to 350ºC(32ºF to 662ºF)
ACCURACY :
0ºC to 115ºC (32ºF to 240ºF)±3ºC (±6ºF)
116ºC to 225ºC (241ºF to 440ºF)larger of ±5%
226ºC to 350ºC (441ºF to 662ºF) >±5%

Spectral Response 7 to 18 microns
System Repeatability ±1% of measured value or ±1°C (2°F), whichever is greater
Temperature Resolution <0.5°C or 1°F
Reponse Time (95%) 350 mSec
Emissivity Fixed at 0.95

CI HIGHLIGHTS :

Type J or k, or 0-5 V output
Two models cover temperature ranges from 0°C to 500°C (32°F to 932°F)
Ip 65 (NeMA-4) stainless steel electronics housing
4:1 optics at 90% energy
350 mSec (95%) response time
powered by 12–24 VDC at 20 mA
Accessories for cooling and air purging
