Dwyer ADPS-05-2-N-C Differential Pressure Switch

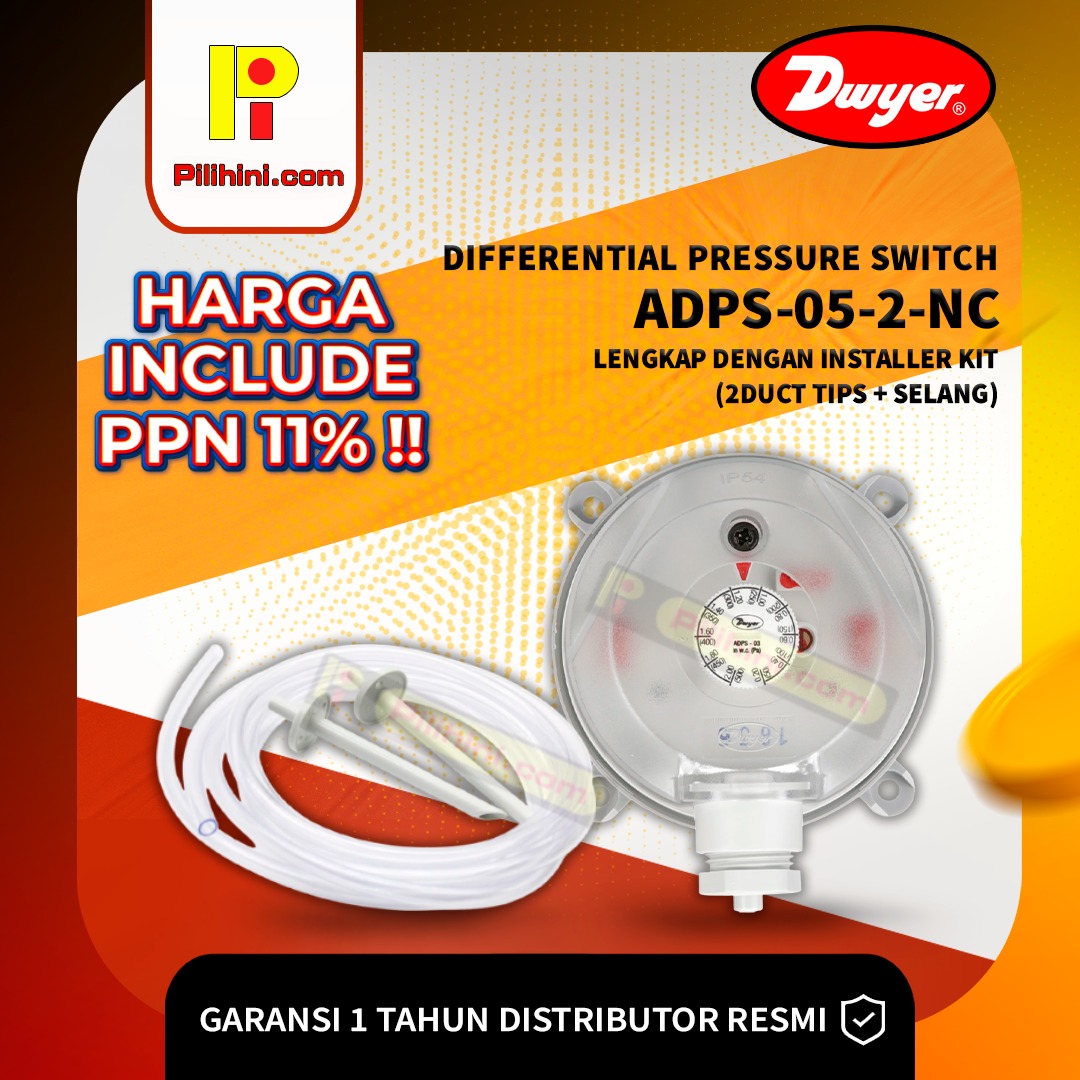

ADPS-05-2-N-C Adjustable differential pressure switch, set point range 0.80 to 4.00″ w.c., M20 connection, with two static tips and 7 ft (2.1 m) of PVC tubing.

The Series ADPS/EDPS Adjustable Differential Pressure Switch is designed for pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches water column and pascals allows changes to the switching pressure to be made without a pressure gage.

Product Applications
1. Monitoring air filters and ventilators.
2. Monitoring industrial cooling-air circuits.
3. Overheating protection for fan heaters.
4. Monitoring flows in ventilation ducts.
5. Controlling air and fire-protection dampers.
6. Frost protection for heat exchanges


Service: Air and non-combustible, compatible gases.
Wetted Materials: ADPS: Diaphragm material: Silicone; Housing material: POM; Switch body: PA 6.6; Cover: Polystyrene; EDPS: Diaphragm material: Silicone; Housing material: Switch body: PA 6.6; Cover: Polystyrene; Materials UL 94 V-0 rated.
Temperature Limits: Process and ambient temperature from -4 to 185F (-20 to 85C).
Pressure Limits: Max. Operating Pressure: 40″ w.c. (10 kPa) for all pressure ranges.
Switch Type : Single-pole double-throw (SPDT).
Electrical Rating: Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min.
Electrical Connections: Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2″ NPT connection.
Process Connections: 5/16″ (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing.
Enclosure Rating: NEMA 3 (IP54).
Mounting Orientation: Vertically, with pressure connections pointing downwards.
Mechanical Working Life: Over 106 switching operations.
Weight: 5.6 oz (160 g).
Agency Approvals: CE, ETL approved to UL508 and CSA C22.2#14 (EDPS only)
