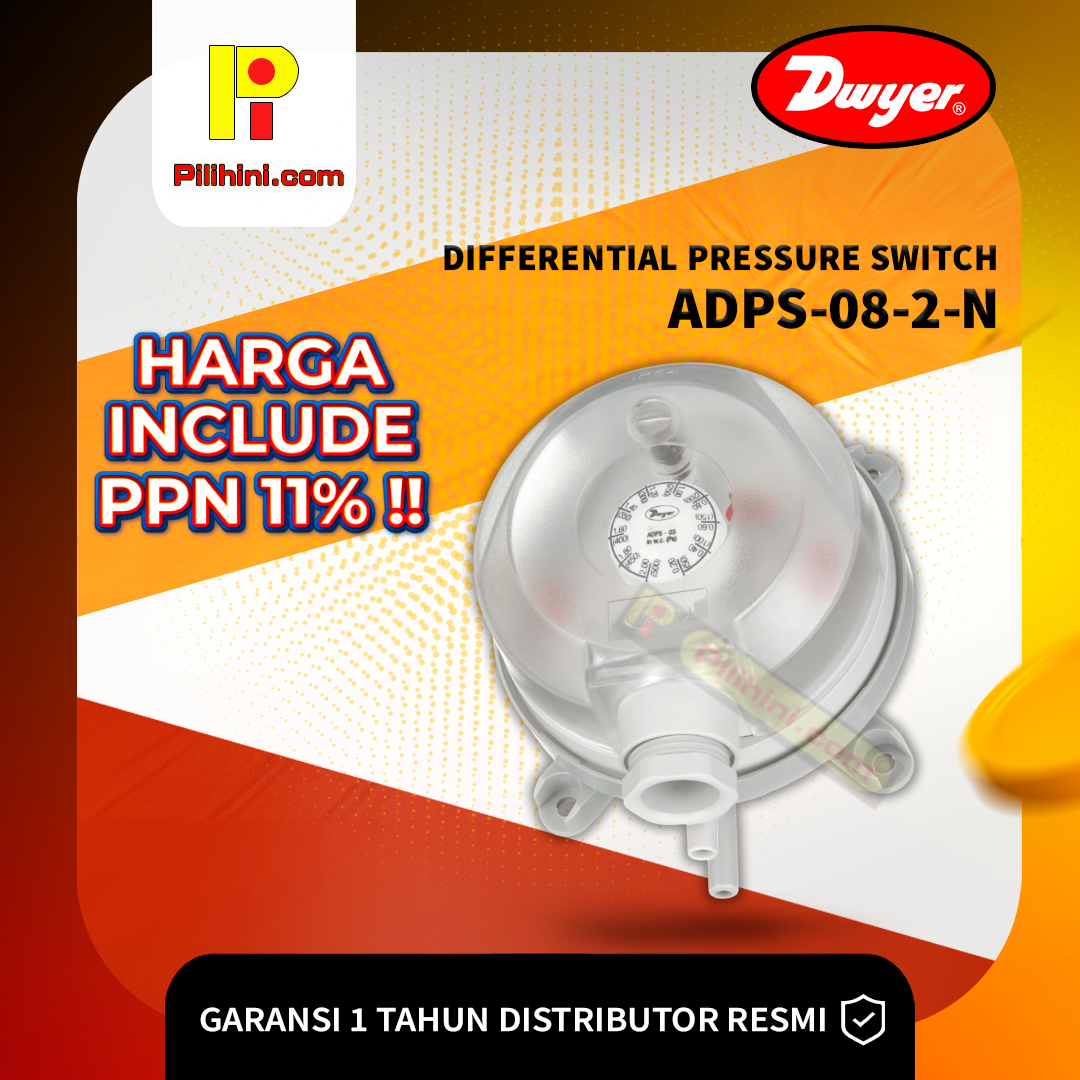

Dwyer ADPS-08-2-N Differential Pressure Switch

Rp535.000

Category:

Description

FUNGSI: UNTUK MENGETAHUI KEADAAN FILTER. SERING DIGUNAKAN DI HEPA FILTER.
OUTPUT: SWITCH
SET POINT RANGE: 20-300PA

Specifications
Service: Air and noncombustible, compatible gases.
Wetted Materials: Diaphragm material: Silicone; Housing material & switch body:
POM and PA 6.6; Cover: Polystyrene.
temperature Limits: Process ambient temperature from -4 to 185˚F
(-20 to 85˚C).
pressure Limits: Max. Operating Pressure: 40” W.C. (10 kPa) for all pressure
ranges.
Switch type: Single-pole double-throw (SPDT).
Repeatability: ±15% FS.
electrical Rating: Standard: Max., 1.5A/250 VAC, max. switching rate: 6
cycles/min.; Gold Contact Option: 0.1 A/ 24 VDC.
electrical connections: Push-on screw terminals. M20x1.5 with cable strain
relief or optional 1/2˝ NPT connection.
process connections: 5/16˝ (7.94 mm) outside diameter tubing, 1/4˝ (6.0 mm)
inside diameter tubing.
Mounting orientation: Vertically, with pressure connections pointing downwards.
Mechanical Working Life: Over 106 switching operations.
